17AM1 series for high voltage motor overcurrent protection

17AM1 series Thermal Protectors deliver the SAME maximum protection as 17AM in the smallest package at a MUCH LOWER price. TOPRO 17AM1 series Thermal Protectors are miniature, light weight and sensitive to both temperature and current. The sealed steel cases will stand most dip and bake processes and can be mounted directly on motor windings for fast detection of temperature changes. Robust construction and ability to withstand typical mechanical pressures make TOPRO 17AM1 ideal for installation during the manufacture of electric motors and transformers.

Descriptions

※Why you should be using 17AM1 Thermal Protectors in your product:
* Miniature size, easy to install.
* Individually temperature calibrated and checked.
* Positive make and break with TOPRO snap action bimetal disc.
* Repeatable temperature performance over life.
* Gasket steel case suitable for many impregnation processes.
* Both current and temperature sensitivity for maximum design flexibility.
* Wide selection of leads and imported Mylar insulating sleeves.
* Same side or opposite side terminals.
* Strict RoHS environmental standard implemented for each component.
* Cadmium free silver-nickel alloy contacts
* Wide selection of trip off temperatures
* Internal resistance as low as below 50 milliohm
* High temperature resistant lead wire, customizable as per customer requirements

※17AM1+PTC thermal protectors protect against overheating and overcurrent in:
* Shaded Pole Motors
* Permanent split capacitor motors
* Fluorescent lighting ballasts, HID ballasts
* Battery packs
* Transformers
* Recessed lighting fixtures
* Vacuum cleaners, pumps
* Automotive accessory motors, solenoids, PCBs

※Specifications:
* Electric Parameter: AC120V 30A, AC240V 17A 50Hz / 60Hz
* Contact Life Cycles: AC120V 30A, AC240V 17A no less than 6,000 cycles; AC120V 5A no less than 100,000 cycles
* Trip off Temperatures: 55 ~ 155 degrees centigrade. 160 ~ 185 degrees centigrade are available for customization.
* Temperature Tolerance: +/-5 degrees centigrade
* Reset Temperature: 10 ~ 45 degrees centigrade below the trip off temperatures.

Certifications

All our products of 17AM1 series are certified with UL, cUL, VDE, CQC, KC, and RoHS and REACH environmental protection decrees are strictly implemented. Larger and clear reports are available upon request when appropriate.
Please contact us to request for clear copies of the certificates and test reports of the certifications when necessary.

Dimensions

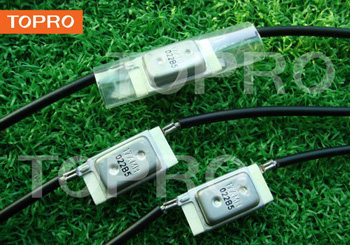

17AM1 Dimensions: 23.3x10.5 x4.6 mm(Same side terminals), 27x10.5x4.6(Opposite side terminals), 37x11.5x5mm (With Mylar sleeve / tube)

Working Principle

This thermal protector will cut off the circuit automatically in case of overcurrent or overheat. 17AM1 thermal protectors use the same snap-action principle of KLIXON protectors. The bimetal disc senses both heat and current from the equipment which 17AM1 is installed on. When the temperature of the disc reaches a predetermined calibration point, the disc snaps open the contacts, thus breaking the current path. When the equipment returns to a normal operating range, the 17AM1 protector resets (closes circuit) automatically.

Temperature Code

Graphs

Differential of terms: thermal protector, thermal switch, thermal protection switch, temperature switch, Thermal Cut-out, temperature controller, thermostat
The terms thermal protector, thermal switch, temperature switch, temperature controller and thermostat all refer to a mechanical device that contains a bimetallic strip sensitive to temperature and is therefore used to trigger a snap action when the temperature rises to a preset point. The snap action can cut off or put through power supply to control the protected device.
Thermal protector is the most standard term. As in most cases a thermal protector is used to protect the motor of a machine, such as vacuum cleaner, power tools, mower, washing machine, compressor, the thermal protector is often referred to as a motor thermal protector or a thermal motor protector. As the thermal protector can make or break the circuit like a usual switch, it is also called a thermal switch or temperature switch. Since they are made with the key component, a bimetallic strip, they are also called bimetal Thermal Switches. A thermostat or temperature controller is used to control the temperature within a certain range. Unlike the motor thermal protector, the thermostat and temperature is often used in a heating device. Literally, thermal protection switches are the same  as thermal protectors or Thermal Switches.
TOPRO 17AM1 Motor Thermal Protectors are the same in quality and structure as 17AM thermal protectors made by Klixon, but much lower in price.
